11FA034
$ 16.50 USD
| /
PYI Floor Anchors are designed and engineered to secure floorboards or lock hinged panels. Available in 316L stainless steel, they will not corrode, discolor with age or damage the wood surface. These PYI Floor Anchors meet ISAF requirements for offshore boats (category 2.03) and can safely hold 500lbs per unit. The opening mechanism is a simple bayonet style, with 1/4 turn lock and release that will not loosen with age. It can be opend or closed by either a coin or flat head screwdriver with all components permanently attached so you don't have to worry about loose pieces dropping in the bilge. Suitable for 1/2" to 3/4" or 7/8" to 1-1/4" thick floorboards.
Made of brass or stainless steel.
Safely hold 500 lbs per unit.
Meets ISAF requirements for offshore boats.
Opening mechanism is a simple bayonet style, with 1/4 turn lock and release.
Can be opened or closed by either a coin or flat head screwdriver.
All components permanently attached, no loose pieces to drop in the bilge.
Made of 316L stainless steel or brass. Will not corrode, discolor with age or damage the wood surface.
PYI Floor Anchors are flush mounted for improved aesthetics. The permanently glued tapered washer acts as protection for the floorboards.
Opening mechanism is a simple bayonet style, with 1/4 turn lock and release that will not loosen with age. Can be opened or closed by either a coin or a flat head screwdriver. All components permanently attached, no loose pieces to drop in the bilge.

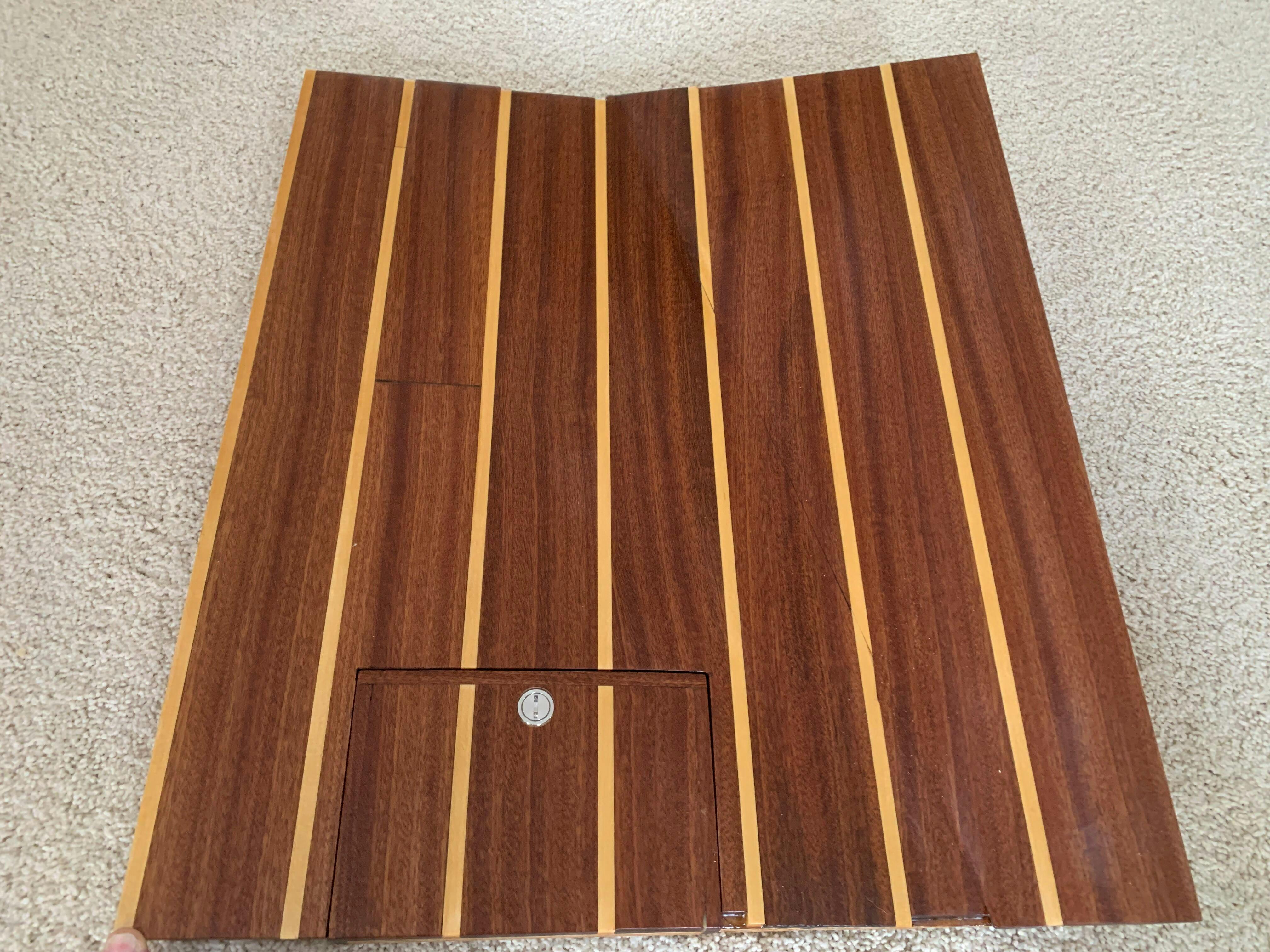

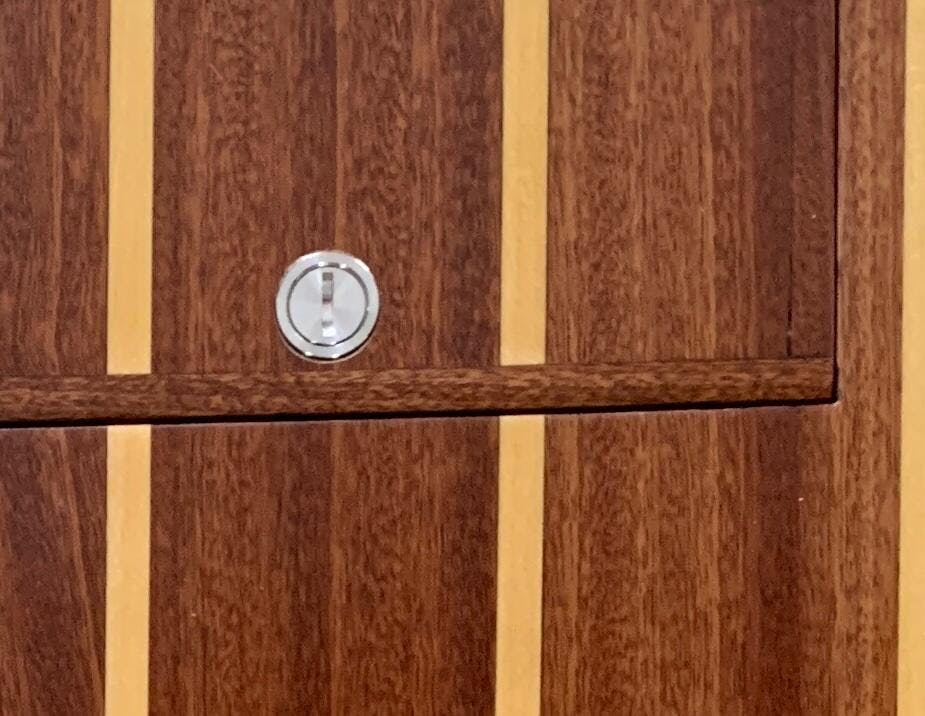

In preparation for replacing my cabin sole I purchased 4 floor anchors, and built a mock-up of the floor assembly including one of the anchors. Although the installation kit would make sense for a larger volume installation, I used 11/32” and 31/64” twist drills a step drill, and a M12x1.75 tap for the installation. Worked like a charm for a neat installation. The anchors should work great when I do the permanent installation.
I ordered a dozen of the floor anchors and repaired/replaced 3. Worked really well and was easy. I put the 4th in and discovered it was too short for a thicker floor hatch. Do you make longer floor anchors?? I need one or two. Thanks for making a great product and great service.
Nice!
For larger orders PYI should waive shipping.
- PYI provides pre-purchase install details
- purchase via their web-site was easy
- delivered to my door in Canada
- everything was as expected
Perfect!
